Name: DYscan DI9010-2D Bluetooth Wearable Ring Barcode Scanner
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 28.00 USD
Availability: InStock

홈 제품 소개 무선 바코드 스캐너

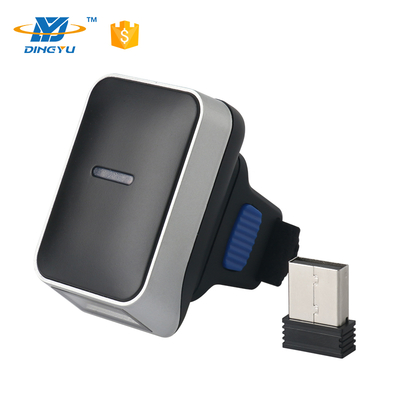

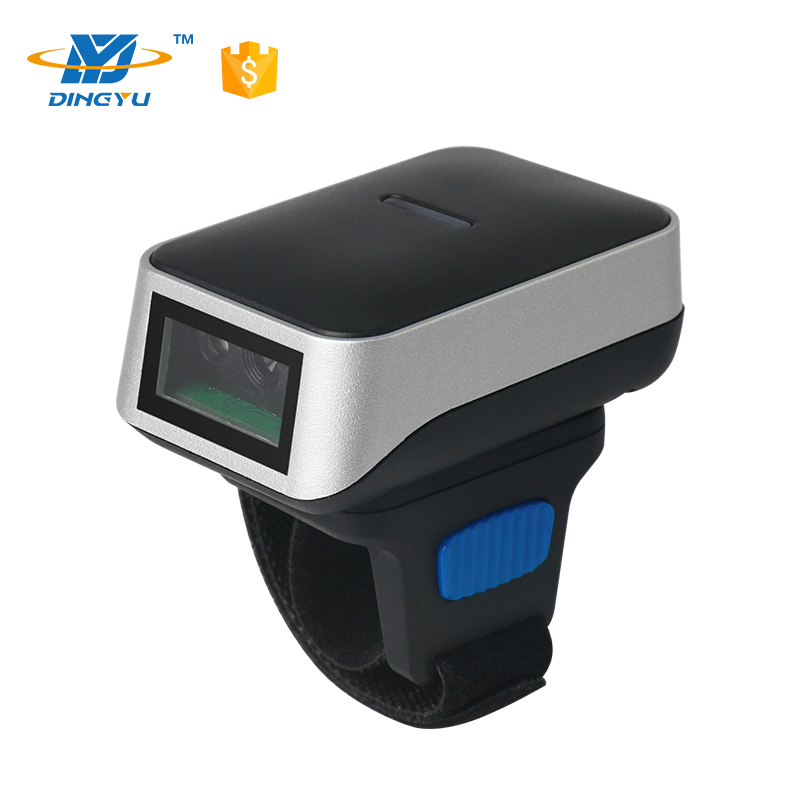

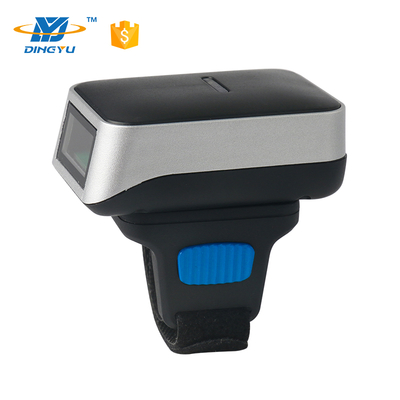

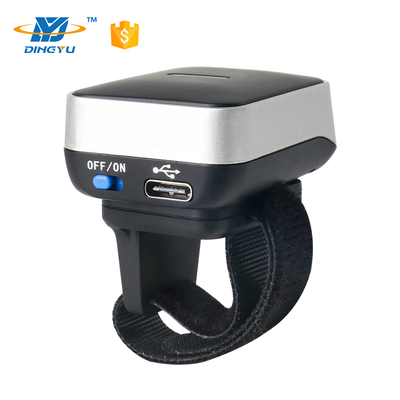

DYscan DI9010-2D Bluetooth Wearable Ring Barcode Scanner

제품 상세 정보:

결제 및 배송 조건:

최소 주문 수량:	1

접촉

상세 제품 설명

모델 번호:	DI9010-2D	인터페이스 유형:	2.4g Bluetooth
스캔 속도:	300은 / 초를 스캐닝합니다	스캔 요소:	CCD
CPU:	32개 비트	해결:	4mil/0.1mm (PCS90%, 코드 39)
피사계 심도:	60mm-500mm	스캔 모드:	수동, 연속
프롬프트 모드:	램프 버저를 나타내는 LED	인쇄 대비:	25%PC
주변광:	70000 럭스	무게:	케이블없이 35g
케이블을 고발하기:	유형 C.	배터리 용량:	350mAh
치수:	12010440mm
강조하다:	Bluetooth wearable ring barcode scanner , Wireless barcode scanner with warranty , DYscan DI9010-2D ring scanner

1D 2D Wearable Ring Barcode Scanner Mini Portable Bluetooth Finger Ring Barcode Scanner

Product Specifications

Attribute	Value
Model NO.	DI9010-2D
Interface Type	2.4G Bluetooth
Scan Speed	300 scans/sec
Scan Element Type	CCD
CPU	32bit
Resolution	4mil/0.1mm(PCS90%,Code 39)
Depth of Field	60mm-500mm
Scan Mode	Manual, Continuous
Prompting Mode	LED Indicating Lamp Buzzer
Print Contrast	25%PCS
Ambient Light	70000lux
Weight	35g Without Cable
Charging Cable	Type C
Battery Capacity	350mAh
Transport Package	12010440mm

Product Description

The DI9010-2D is a high-performance 2D Bluetooth barcode scanner featuring leading CMOS image recognition technology. This wearable ring scanner easily reads barcodes from paper, goods, screens, and other media. Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset inventory applications.

Technical Parameters

Parameter	Specification
Light Source	Lighting: white LED (auto-adjust brightness) Aiming: Green LED (525nm wavelength)
CMOS	640×480 CMOS
CPU	ARM 32-bit
Startup Time	750ms
Resolution	1D: ≥3mil, 2D: ≥8.7mil @PCS90%
Depth of Field	3mil: 55-100mm, 13mil: 55-350mm
Scan Mode	Trigger mode, Auto sense mode
Reading Angle	Roll: ±360°, Pitch: ±60°, Yaw: ±70°

Supported Symbologies

1D: Codabar, Code39, Code32, Interleaved 2 of 5, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN, GS1 databar
2D: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec

Frequently Asked Questions

Q: How do you ensure product quality?

DYscan is a professional manufacturer with 18 years of experience. Our products undergo rigorous testing including engine age tests, wire bend tests, switch life tests, and shock resistance tests. All scanners are CE, FCC, and ROHS certified.

Q: What is the warranty period?

12 months warranty for all our barcode scanners.

Q: Do you offer OEM/ODM services?

Yes, we provide OEM services including custom logos, packaging, and user manuals. Our technical team supports ODM development.

Q: Are drivers required?

No drivers needed - our scanners support plug-and-play operation with Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
