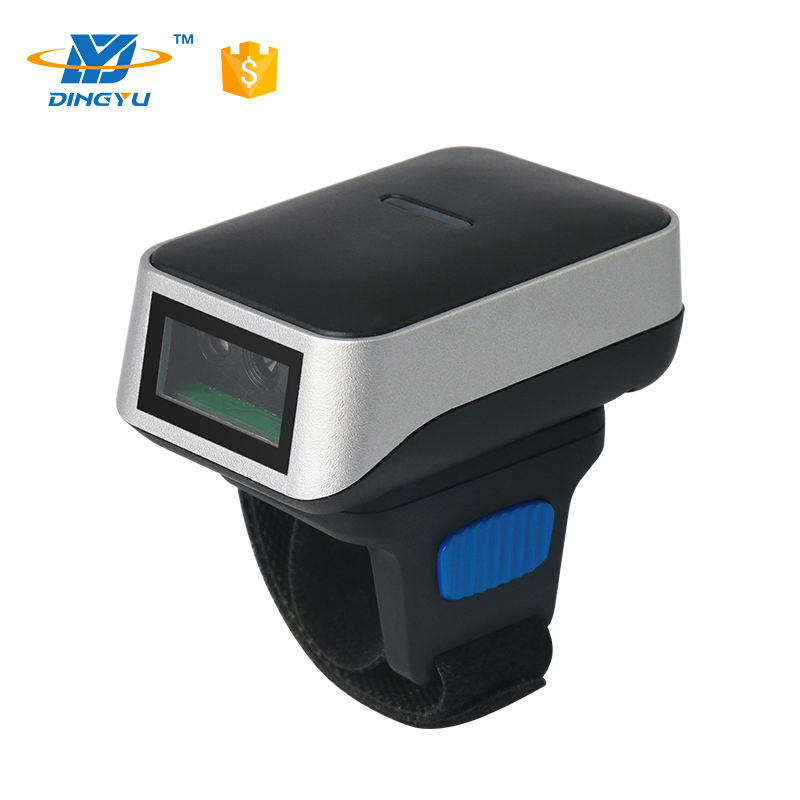

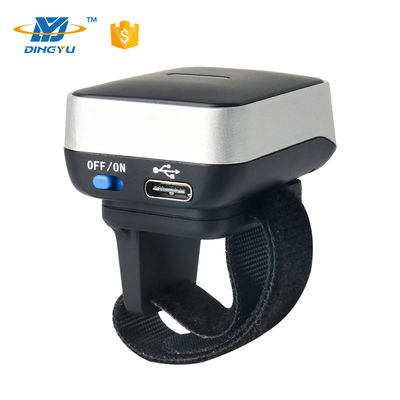

Name: Wireless 2D Bluetooth Barcode Scanner DI9010C-2D with CMOS Technology
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 28.00 USD
Availability: InStock

홈 제품 소개 무선 바코드 스캐너

Wireless 2D Bluetooth Barcode Scanner DI9010C-2D with CMOS Technology

제품 상세 정보:

결제 및 배송 조건:

최소 주문 수량:	1

접촉

상세 제품 설명

모델 번호:	di9010c-2d	인터페이스 유형:	USB
스캔 속도:	300은 / 초를 스캐닝합니다	스캔 요소:	CMOS
해결:	640*480	디코딩 속도:	35 센티미터 / Ｓ
피사계 심도:	35mm ~ 300mm	무선 거리:	30 Ｍ
배터리 용량:	450mAh	충전 시간:	1 시간 (5V@1000MA)
근무 시간:	≥1.5H	무게:	≈35g (케이블없이)
치수:	L52.0mm * W35.0mm * H45.4mm	작동 온도:	-20ºC ~ 55ºC
저장 온도:	-20ºC ~ 60ºC
강조하다:	Wireless Bluetooth barcode scanner with CMOS , 2D barcode scanner with Bluetooth , DI9010C-2D wireless barcode scanner

High Performance Mini Bluetooth Barcode Scanner

A wearable wireless 2D CMOS barcode scanner with leading image recognition technology, ideal for manufacturing, warehouse, logistics, healthcare, retail, and mobile payment applications.

Key Features

Wearable design for warehouse and express applications
Reads all mainstream 1D and 2D barcodes (4mil resolution)
100,000 data storage capacity
Bluetooth 4.2 with intelligent automatic reconnection
Multiple modes: Bluetooth (HID, SPP, BLE), wired connection
Compatible with PC and mobile devices

Product Specifications

Attribute	Value
Model NO.	DI9010C-2D
Interface Type	USB
Scan Speed	300 scans/sec
Scan Element Type	CMOS
Scanning Modes	Auto Sense, Trigger, Continuous
CPU	32-Bit
Resolution	640*480
Battery Capacity	450mAh
Continuous Working Time	1.5 hours
Wireless Range	30m (open distance)

Technical Performance

Parameter	Specification
Scan Type	CMOS
Light Source	Red Light LED 525±10nm (aim), 5600K LED (Lighting)
Decoding Speed	35cm/S
Depth of Field	35mm~300mm (varies by barcode type)
Field of View	Horizontal 45° × Vertical 34°
Scan Angles	Roll±360°, Pitch±60°, Skew±55°

Physical Parameters

Weight	≈35g (without cable)
Dimensions	L52.0mm × W35.0mm × H45.4mm
Communication Modes	USB-KBW, Wireless Bluetooth
Interface Type	Type C

Environmental Specifications

Operating Temperature	-20ºC to 55ºC
Storage Temperature	-20ºC to 60ºC
Humidity	5% to 95% (non-condensing)
Drop Height	1.5m

Supported Symbologies

1D Barcodes: Codabar, Code39, Code32, ITF25, Industrial 2 of 5, Matrix 2 of 5, Code93, Code11, Code128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN, GS1 databar

2D Barcodes: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec

Product Images

Frequently Asked Questions

Q1: How do you ensure the high quality of your barcode scanners?

DYscan is a professional manufacturer with 18 years of experience. We have a dedicated QC team and testing equipment including engine age tests, wire bend machines, and switch life tests. All our scanners pass CE, FCC, and ROHS certifications.

Q2: What is your quality control process?

We conduct wire bend tests for 1 million cycles, button tests for 1 million presses, and all devices are thoroughly tested before shipment.

Q3: What is the warranty period?

12 months warranty.

Q4: Do I need to install drivers?

No, our scanners support plug-and-play functionality and are compatible with Windows, Mac OS, iOS, Linux, UNIX, and Android systems without requiring driver installation.
