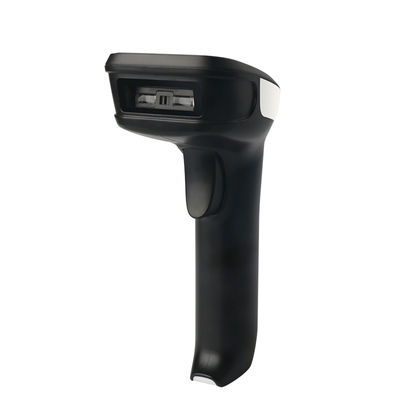

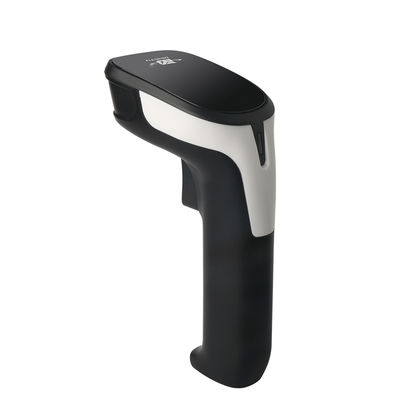

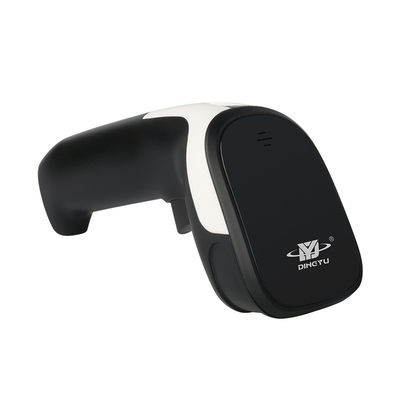

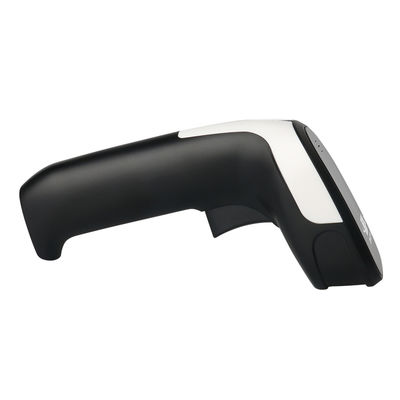

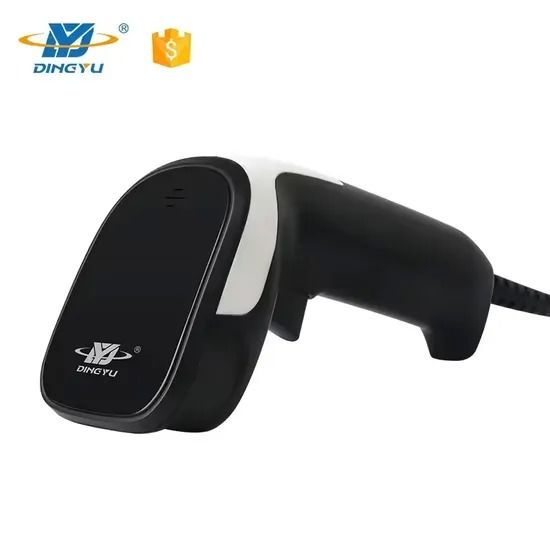

Name: DS5110 1D CCD Barcode Scanner with USB RS232 3mil Resolution
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 10 USD
Availability: InStock

홈 제품 소개 1D 바코드 스캐너

DS5110 1D CCD Barcode Scanner with USB RS232 3mil Resolution

제품 상세 정보:

결제 및 배송 조건:

최소 주문 수량:	1
가격:	10

접촉

상세 제품 설명

모델 번호.:	DS5110	인터페이스 유형:	USB, RS232
스캔 요소:	CCD	카메라 해상도:	640*480
바코드 해상도:	3mil 코드 39	피사계 심도:	10-600mm
스캔 모드:	수동, 연속, 자동 스캔, 깜박임	인쇄 대비:	20%
CPU:	32 비트	치수:	L161mm * W63mm * H80mm
무게:	147g	의사소통:	USB(USB-KBW,USB-COM),RS232
작동 온도:	-20 ~ 50도	저장 온도:	-40 ~ 70도
드롭 높이:	1.5m
강조하다:	1D CCD barcode scanner with USB , 1D barcode scanner RS232 interface , DS5110 barcode scanner 3mil resolution

Handheld 1D Wired Scanner Barcode Reader CCD Barcode Scanner with USB RS232

High-Performance 1D Barcode Scanner

The DS5110 is a professional-grade 1D barcode scanner featuring advanced CCD image recognition technology. Designed for reliable performance across various applications, it efficiently reads barcodes from paper, products, screens, and other media surfaces.

Key Applications

Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset inventory systems.

Technical Specifications

Parameter	Specification
Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	2500
Reading Precision	≥3mil/0.076mm (PCS90%, Code 39)
Decoding Speed	300 times/s
Depth of Field	10mm-600mm
Scan Modes	Manual, Continuous, Auto Sense, Flashing
Scan Angles	Pitch: ±60° \| Roll: ±30° \| Skew: ±60°
Supported Symbologies	UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7), Plessey, MSI Plessey, RSS, China Post, etc.
Physical Dimensions	161mm (L) × 63mm (W) × 80mm (H)
Weight	≈147g (without cable)
Communication Interfaces	USB (USB-KBW, USB-COM), RS232
Power Supply	DC 5V@80mA (operating)
Operating Temperature	-20ºC to 50ºC
Storage Temperature	-40ºC to 70ºC
Humidity	5% to 95% (non-condensing)
Drop Resistance	1.5m
