| 모델번호: | DE2290D | 인터페이스 유형: | USB |
|---|---|---|---|
| 스캔 속도: | 65 센티미터 / Ｓ | 스캔 요소: | CMOS |
| 해결: | 3mil/0.076mm | 이미지 센서: | 640*480 |
| 스캔 모드: | 자동 스캔, 연속 | 인쇄 대비: | 20% |
| 무게: | 3.5g | 전원공급장치: | DC 3.3V, 200mA 작동 |
| 치수: | 길이 21.35mm * 폭 15.50mm * 높이 11.40mm | FFC 케이블: | 5cm |
| 드롭 높이: | 1.2m | 작동 온도: | -20ºC ~ 50ºC |
| 보관 온도: | -40ºC ~ 60ºC | ||
| 강조하다: | 3mil/0.076mm Resolution Barcode Scanner Module,640*480 Image Sensor Barcode Scanner Module,High-Performance 2D Barcode Scanner Module |
||

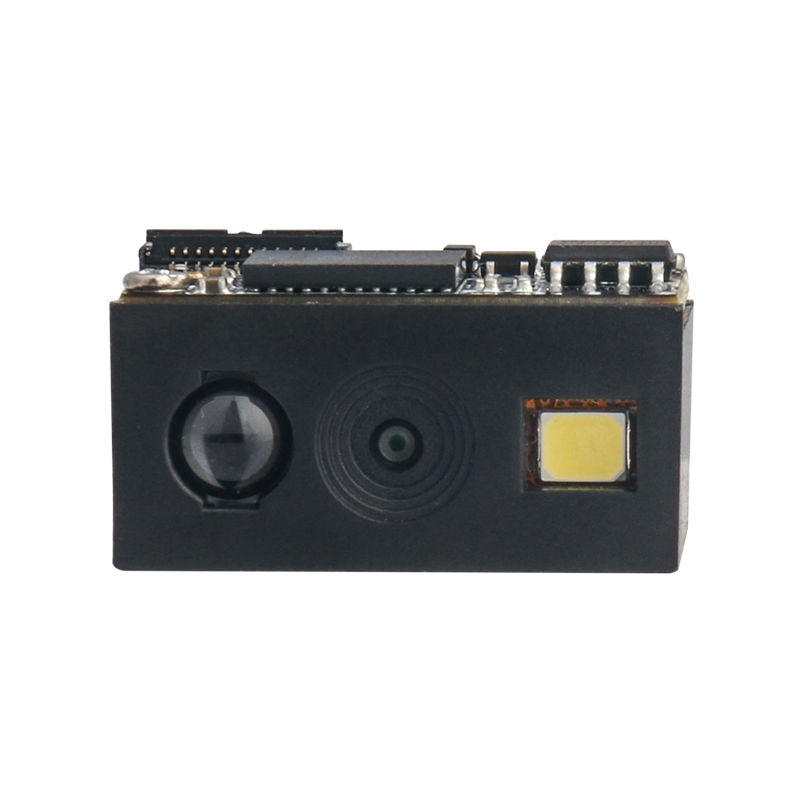

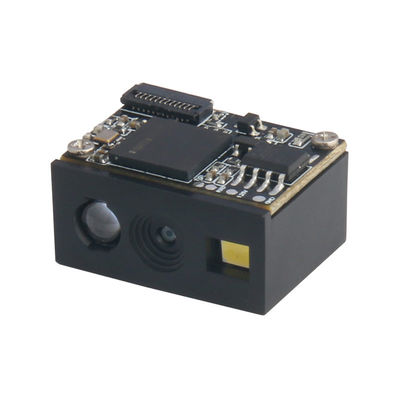

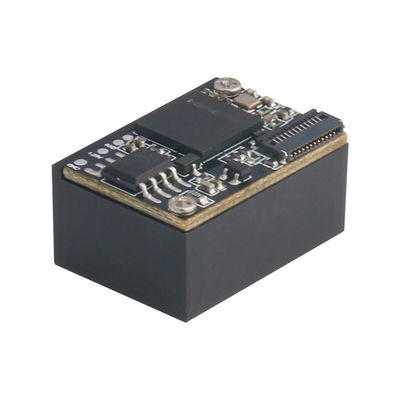

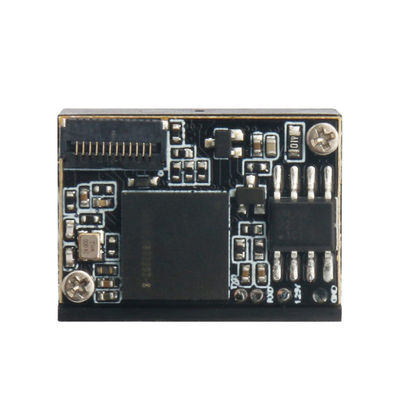

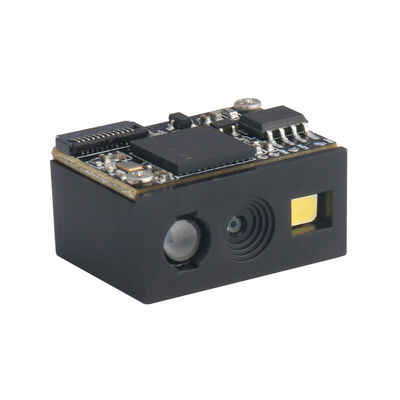

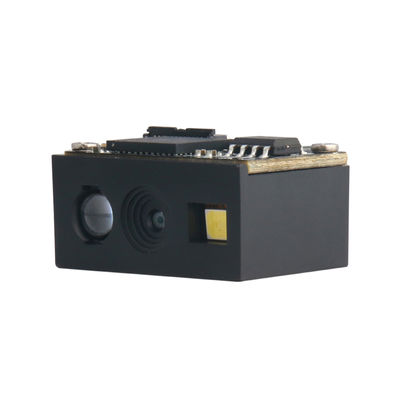

The DE2290D is a high-performance 300,000 global pixel embedded 2D image module featuring advanced CMOS image recognition technology and intelligent image recognition system.
With excellent reading performance, it easily scans barcodes on various media including paper, merchandise, and digital screens. Its compact integrated design allows for easy installation in a wide range of equipment.
Ideal for self-service machines, price checking systems, lockers, and other automated applications.
| Communication | USB (USB-KBW, USB-COM, HID-POS), TTL |
|---|---|
| Scan Type | CMOS, Global shutter |
| Resolution | 300,000 pixel, 640×480 |
| Reading Precision | ≥3mil/0.076mm (PCS90%, CODE 39) |
| Depth of Field | 30mm~550mm (varies by barcode type) |
| Decoding Speed | 65CM/S |
| Scan Modes | Manual, Continuous, Auto Sense, Command control |
| Prompt Method | LED indicator light, buzzer (external circuit) |
| Field of View | 41° × 31° |
| Scan Angle | Roll: ±360°, Pitch: ±60°, Skew: ±55° |
| Supported Symbologies |
1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, Codabar, MSI, GS1 Databar, China Post, and more 2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin Code, Japan post, Postnet |
| Weight | Approximately 3.5g |
|---|---|
| Dimensions | 21.35mm L × 15.50mm W × 11.40mm H |
| FPC Cable Length | 5CM (FPC single-sided cable) |
| Interface Type | FPC 12PIN Pitch 0.5 |
| Power Supply | DC 3.3V |
| Current | 200mA (Average Work), 95mA (Standby), 38mA (Sleep) |
| Operating Temperature | -20ºC to 50ºC |
|---|---|
| Storage Temperature | -40ºC to 60ºC |
| Humidity | 5% to 95% (No condensation) |
| Transport | 10H@125RPM |
