Name: High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 10 USD
Availability: InStock

홈 제품 소개 바코드 검사 엔진

High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU

제품 상세 정보:

결제 및 배송 조건:

최소 주문 수량:	1
가격:	10

접촉

상세 제품 설명

모델번호:	DE2290	인터페이스 유형:	USB
스캔 속도:	35 센티미터 / Ｓ	스캔 요소:	CMOS
해결:	3mil/0.076mm	이미지 센서:	640*480
인쇄 대비:	20%	전원공급장치:	DC 3.3V, 200mA
FFC 케이블:	5cm	드롭 높이:	1.2m
무게:	3.5g	피사계 심도:	40-530mm
치수:	21.40×15.40×10.70mm	광원:	백색 LED, 적색 LED
작동 온도:	-20ºC ~ 55ºC
강조하다:	1 Mega Pixel Barcode Scanner Module , 640*480 Image Sensor 2D Barcode Scan Engine , 32-bit CPU Embedded Barcode Scanner

High Quality USB Fixed Kiosk 2D Good Payment Barcode Scanner Module

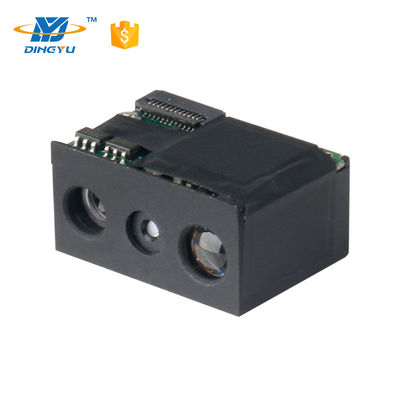

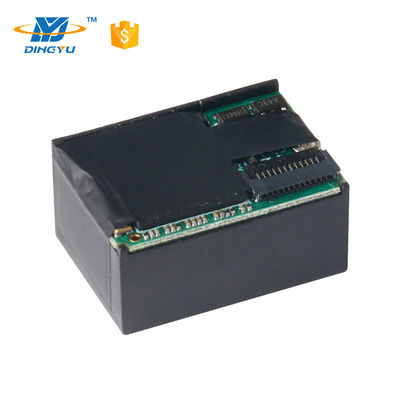

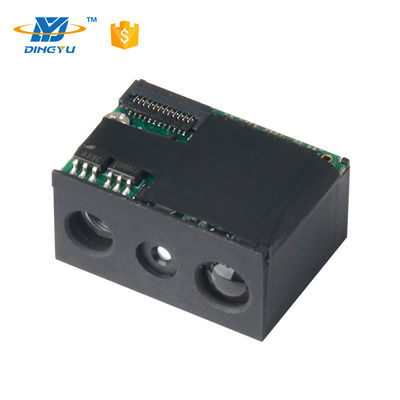

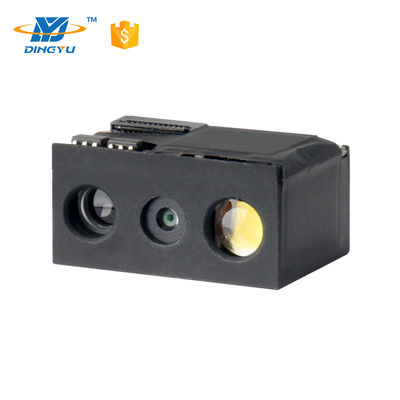

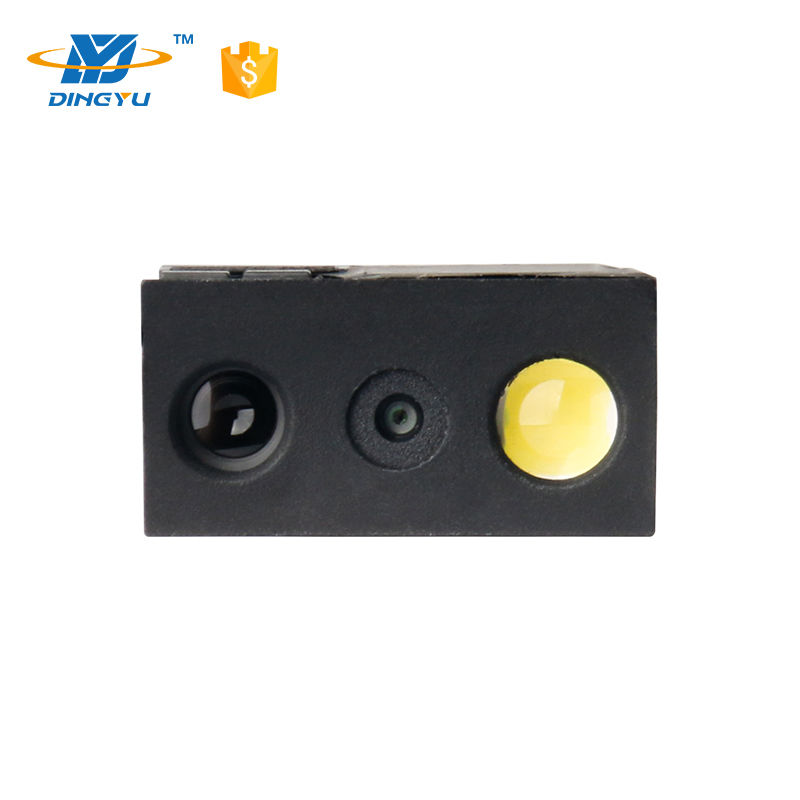

DE2290 is a high-performance 1 megapixel embedded 2D image module featuring advanced CMOS image recognition technology and intelligent image recognition system.

Excellent reading performance for barcodes on paper, merchandise, and digital screens
Compact integrated design for easy installation in various equipment
Ideal for self-service machines, price checking systems, and smart lockers

Product Specifications

Weight: 3.4g (without cable)

Dimensions: 21.40±0.1mm (L) × 15.40mm±0.1mm (W) × 10.70±0.1mm (H)

Interface: USB, USB-com (requires driver), TTL (USB 2.0 Full Speed protocol)

Light Source: White LED (auto-adjusting brightness) with red aiming LED (525nm wavelength)

CMOS: 1280×800 resolution

CPU: ARM 32-bit processor

Performance Parameter	Specification
Startup Time	750ms
Resolution	≥3mil/0.076mm (PCS90%, CODE 39)
Depth of Field	30-500mm
Scan Modes	Trigger mode, Auto sense mode, Command control
Reading Angles	Roll: ±360°, Pitch: ±60°, Yaw: ±70°
Motion Tolerance	65cm/s
Power Input	3.3V~5V (DC5V recommended), Standby: 47mA, Decoding: 180mA average

Supported Symbologies

1D Codes: Codabar, Code39, Code32, ITF25, Industrial 25, Matrix 25, Code93, Code11, Code128, GS1-128, UPC-A/E, EAN/JAN, ISBN, ISSN, GS1 Databar variants, MSI, Febraban

2D Codes: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec

Environmental Specifications
