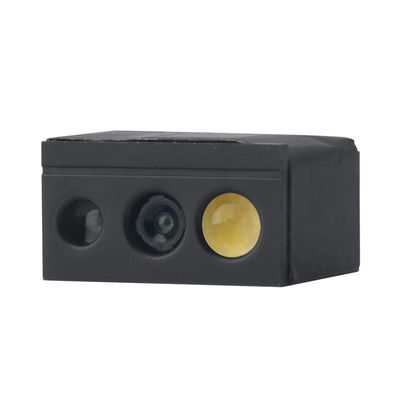

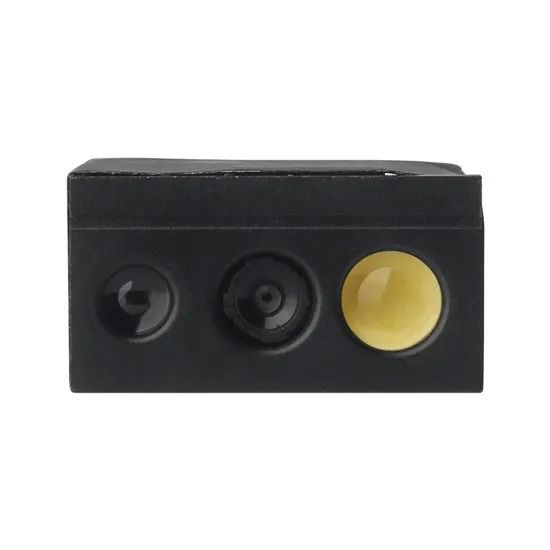

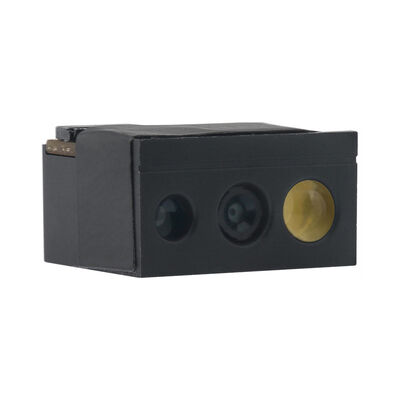

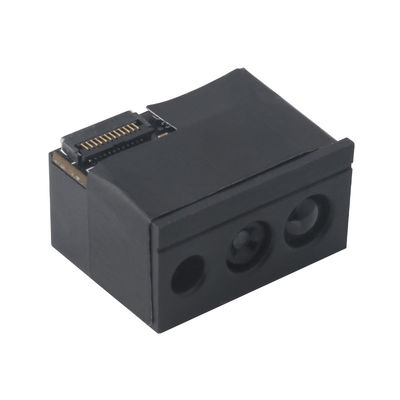

Name: Small Embedded 2D Barcode Scanner with 1280*800 Image Sensor 50mm~750mm Depth of Field and 1.2m Drop Height
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 20 USD
Availability: InStock

홈 제품 소개 바코드 검사 엔진

Small Embedded 2D Barcode Scanner with 1280*800 Image Sensor 50mm~750mm Depth of Field and 1.2m Drop Height

제품 상세 정보:

결제 및 배송 조건:

최소 주문 수량:	1
가격:	20

접촉

상세 제품 설명

모델번호:	DE2390	인터페이스 유형:	USB
스캔 속도:	65 센티미터 / Ｓ	스캔 요소:	CMOS
해결:	3mil/0.076mm	이미지 센서:	1280*800
스캔 모드:	수동, 유도, 연속, 지시	인쇄 대비:	20%
감지기:	CMOS, 글로벌 노출	픽셀:	1,000,000
피사계 심도:	50mm~750mm	FFC 케이블:	5cm
드롭 높이:	1.2m	치수:	21.5mm 길이 * 15.9mm 너비 * 11.30mm 높이
전원 입력:	3.3V
강조하다:	1280*800 Image Sensor Barcode Scanner , 50mm~750mm Depth of Field Barcode Scan Engine , 1.2m Drop Height Embedded Barcode Reader

Small Embedded 2D Barcode Reader CMOS OCR Passport Barcode Scanner

The DE2390 is a high-performance embedded 2D barcode module featuring advanced CMOS image recognition technology. This compact scanner combines a 1 million pixel global camera with excellent reading performance, capable of decoding barcodes from both paper and digital displays. The module also includes OCR functionality for reading ID and passport characters.

Key Features:

High-resolution 1280×800 CMOS sensor
ARM32-bit processor for fast decoding
OCR capability for passport and ID reading
Wide reading range: 50mm to 750mm
Multiple scan modes including trigger, auto, and continuous
Supports extensive 1D and 2D barcode symbologies
Robust construction for industrial environments

Technical Specifications:

Parameter	Specification
Dimensions	21.5mm (L) × 15.9mm (W) × 11.30mm (H)
Interfaces	USB, USB-com (requires driver), TTL
Light Source	White LED lighting, Red LED aiming (525nm wavelength)
Resolution	≥3mil/0.076mm (PCS90%, CODE 39)
Reading Angle	Roll: ±360°, Pitch: ±60°, Yaw: ±55°
Field of View	40° horizontal × 27° vertical
Power Requirements	3.3V (95mA standby, 200mA average decoding current)
Operating Temperature	-20°C to 50°C
Supported Symbologies	Includes UPC, EAN, Code 128, QR Code, Data Matrix, PDF417, Aztec, and many more
