Cost-Effective Embedded 2D CMOS Barcode Scan Engine with 65cm/S Scan Speed and 3mil/0.076mm Reading Precision

제품 상세 정보:

결제 및 배송 조건:

최소 주문 수량:	1
가격:	25

접촉

상세 제품 설명

모델번호:	DE2690D	인터페이스 유형:	USB
스캔 속도:	65 센티미터 / Ｓ	스캔 요소:	CMOS
읽기 정밀도:	3mil/0.076mm	이미지 센서:	1280*480
인쇄 대비:	15%	차원:	28.3mm 가로* 19.1mm 가로 * 12.0mm 높이
보관 온도:	-40 7 ~ 70 ℃	FFC 케이블:	5cm
드롭 높이:	1.2m	무게:	5.5g
피사계 심도:	70-750mm	작동 온도:	-20ºC ~ 55ºC
습기:	5%에서 95%
강조하다:	65cm/S Scan Speed Barcode Scan Engine , 3mil/0.076mm Reading Precision 2D Barcode Scanner Module , 1280*480 Image Sensor Embedded Barcode Reader

Cost-Effective Embedded 2D CMOS Image Reader Module with Megapixel Camera

OEM ODM Mini OCR Passport ID Card Embedded Barcode Scanner 2D Wired Module

A compact, high-performance embedded scanning solution for ID cards, passports, and barcode reading applications.

Product Specifications

Parameter	Details
Weight	5.5g (without cable)
Dimensions	28.3mm L × 19.1mm W × 12.0mm H
Interface	USB, USB-com (requires driver), TTL (USB protocol: Full Speed, USB 2.0)
Light Source	White LED (auto-brightness adjustment) Red aiming LED (525nm wavelength)
CMOS Sensor	1280×800 resolution
CPU	ARM 32-bit processor
Resolution	1D: ≥3mil
Depth of Field	70-750mm (varies by barcode type)
Scan Modes	Manual, Auto, Continuous, Command control
Power Requirements	3.3V, 220mA (operating), 120mA (standby), 40mA (sleep)
Operating Temperature	-20°C to 55°C

Supported Symbologies

1D Codes: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 93, Interleaved 2 of 5, Codabar, and more
2D Codes: QR Code, Data Matrix, PDF417, Aztec, HanXin Code, and more

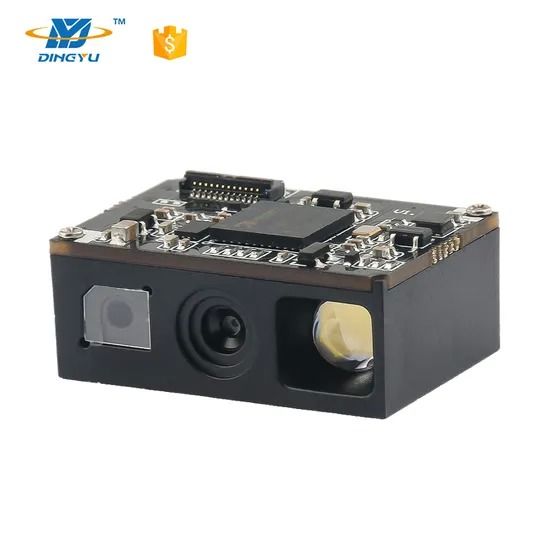

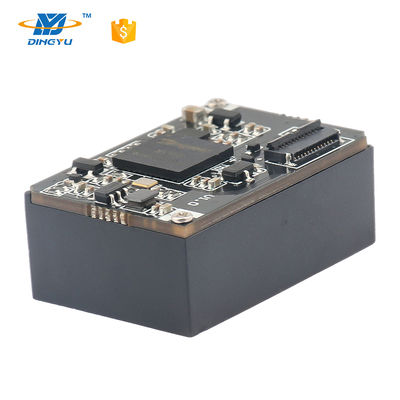

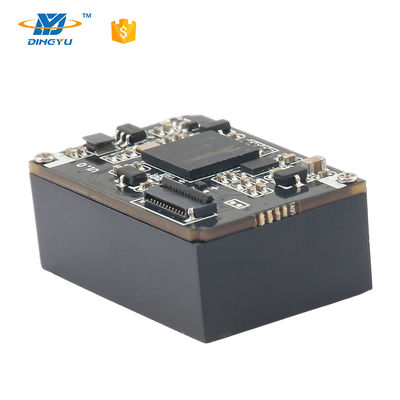

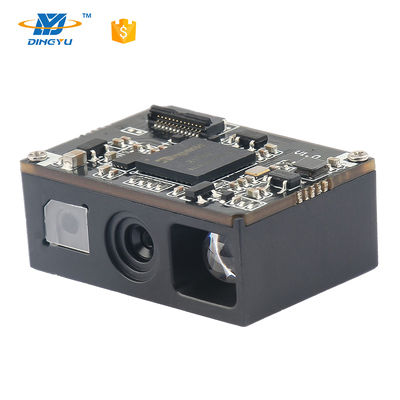

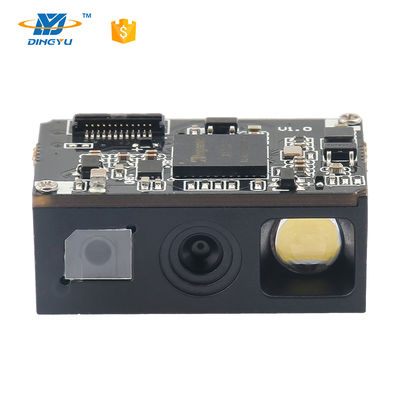

Additional Product Views
