DYscan DS2806-1D 1D Barcode Scanner USB 300 Scans/sec

DYscan DS2806-1D 1D Barcode Scanner USB 300 Scans/sec

  • DYscan DS2806-1D 1D Barcode Scanner USB 300 Scans/sec
  • DYscan DS2806-1D 1D Barcode Scanner USB 300 Scans/sec
  • DYscan DS2806-1D 1D Barcode Scanner USB 300 Scans/sec
  • DYscan DS2806-1D 1D Barcode Scanner USB 300 Scans/sec
  • DYscan DS2806-1D 1D Barcode Scanner USB 300 Scans/sec
  • DYscan DS2806-1D 1D Barcode Scanner USB 300 Scans/sec
DYscan DS2806-1D 1D Barcode Scanner USB 300 Scans/sec
제품 상세 정보:
결제 및 배송 조건:
최소 주문 수량: 1
접촉
상세 제품 설명
모델 번호.: DS2806-1D 인터페이스 유형: USB, RS232
스캔 속도: 300은 / 초를 스캐닝합니다 스캔 요소: 선형 CCD
광원: 가시 적 붉은 빛, 625 ± 10nm CPU: 32개 비트
해결: 1500 읽기 정밀도: ≥4밀/0.1mm
피사계 심도: 40mm-500mm 스캔 모드: 수동, 연속
무게: 약 170g 차원: 길이 163.5mm * 너비 65.0mm * 높이 89.5mm
전원 공급 장치: DC 5V@80MA (작업) 작동 온도: -20ºC ~ 50ºC
습기: 5% ~ 95% (비 콘센트)
강조하다:

1D barcode scanner USB

,

DYscan DS2806-1D scanner

,

barcode scanner 300 scans/sec

Handheld 1D Wired Barcode Scanner PC EAN13 Code Scan Gun
Product Overview

The DS2806-1D is a high-performance 1D barcode scanner featuring advanced CCD image recognition technology. Designed for professional use, it efficiently reads barcodes from various surfaces including paper, goods, and digital screens.

Key Features
  • Ergonomic design for comfortable extended use
  • Reads all mainstream 1D barcodes with exceptional accuracy
  • High-performance 32-bit processor for fast decoding (4mil precision)
  • Supports multiple languages and operating systems
  • Dual interface options: USB and RS232
  • Ideal for supermarkets, warehouses, mobile payments, and chain stores
Technical Specifications
Performance
Scan Type Linear CCD
Light Source Visible red light, 625±10nm
CPU 32-bit
Resolution 1500
Reading Precision ≥4mil/0.1mm (PCS90%, Code 39)
Decoding Speed 300 times/s
Depth of Field 40mm-500mm
Scan Mode Manual, Continuous
Scan Angle Pitch: ±50°
Roll: ±30°
Skew: ±50°
Supported Symbologies UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7), Plessey, MSI Plessey, RSS, China Post, etc.
Physical Parameters
Weight ≈170g
Dimensions 163.5mm × 65.0mm × 89.5mm
Communication Mode USB, RS232
Interface Type USB, DB9
Power Supply DC 5V@80mA (work)
Environmental Specifications
Operating Temperature -20ºC to 50ºC
Storage Temperature -40ºC to 60ºC
Humidity 5% to 95% (non-condensing)
Transport Vibration Test 10H@125RPM
Included Accessories
  • USB Cable for connecting to host devices
  • RS232 Cable with USB supply cable

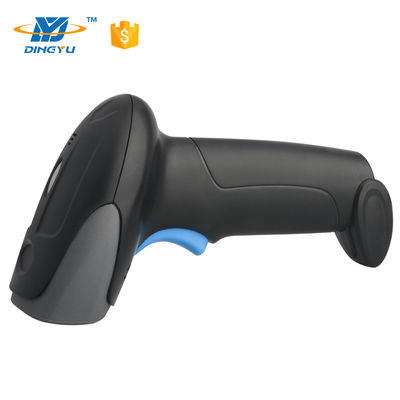

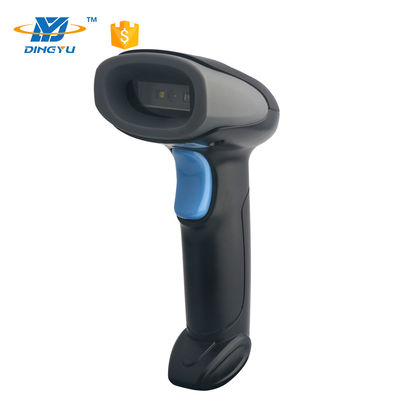

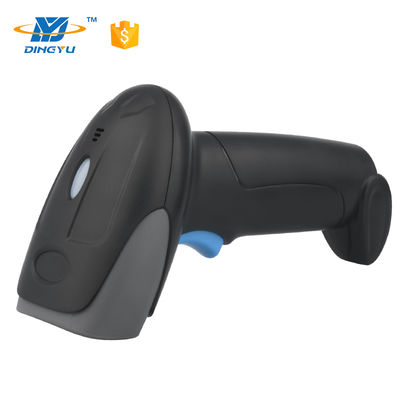

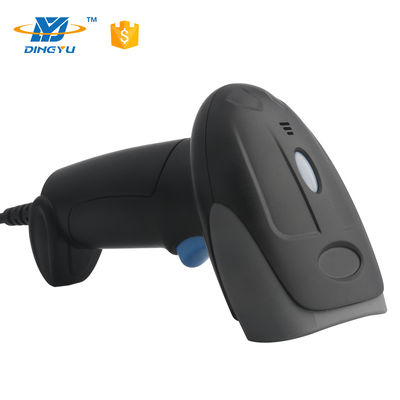

Product Images
DYscan DS2806-1D 1D Barcode Scanner USB 300 Scans/sec 0
DYscan DS2806-1D 1D Barcode Scanner USB 300 Scans/sec 1
DYscan DS2806-1D 1D Barcode Scanner USB 300 Scans/sec 2
DYscan DS2806-1D 1D Barcode Scanner USB 300 Scans/sec 3
DYscan DS2806-1D 1D Barcode Scanner USB 300 Scans/sec 4
DYscan DS2806-1D 1D Barcode Scanner USB 300 Scans/sec 5
Application Scenarios
DYscan DS2806-1D 1D Barcode Scanner USB 300 Scans/sec 6
Frequently Asked Questions
Q1: How do you ensure the high quality of your barcode scanners?

As a professional manufacturer with 18 years of experience, we maintain strict quality control through comprehensive testing including engine age tests, wire bend tests (1 million cycles), switch life tests, and shock resistance tests. All products are CE, FCC, and ROHS certified.

Q2: What is your warranty policy?

We offer a 12-month warranty on all barcode scanners.

Q3: Do I need to install drivers?

No, our scanners support plug-and-play functionality and are compatible with Windows, Mac OS, iOS, Linux, UNIX, and Android systems without requiring additional drivers.

Q4: Do you offer OEM/ODM services?

Yes, we provide comprehensive OEM services including custom branding, packaging, and documentation. Our technical team also supports ODM development projects.
