Name: DS5110 1D CCD Barcode Scanner 3mil Resolution 10-600mm Depth
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

홈 제품 소개 1D 바코드 스캐너

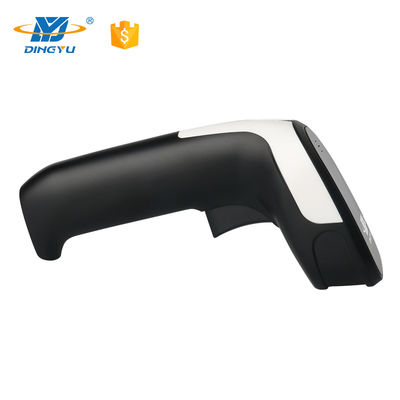

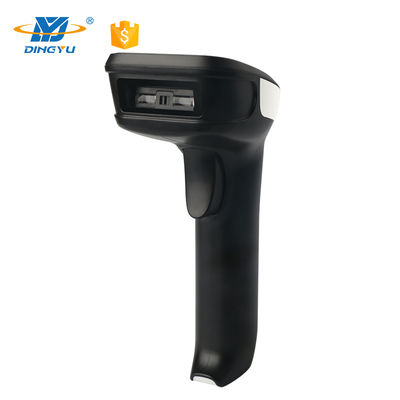

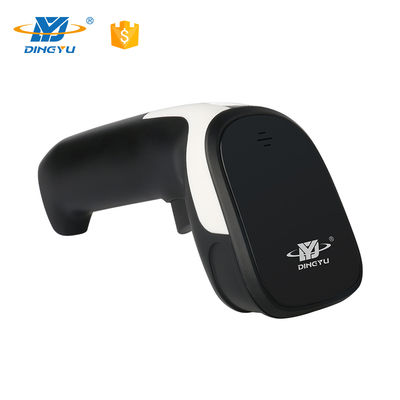

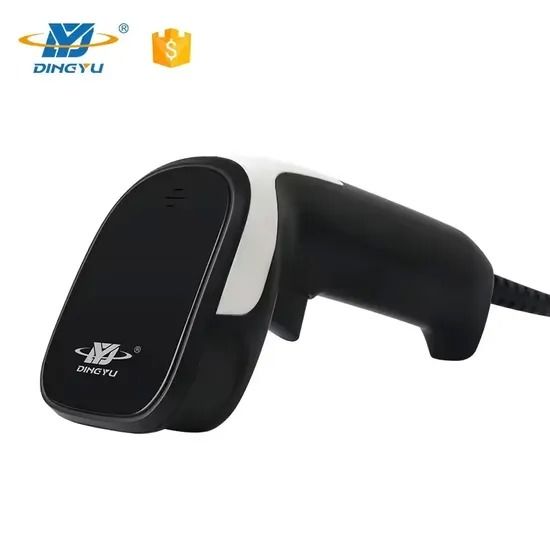

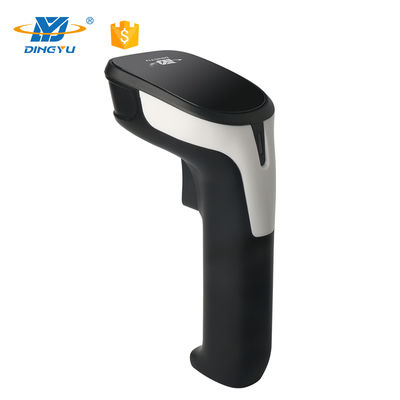

DS5110 1D CCD Barcode Scanner 3mil Resolution 10-600mm Depth

제품 상세 정보:

결제 및 배송 조건:

최소 주문 수량:	1

접촉

상세 제품 설명

모델 번호.:	DS5110	인터페이스 유형:	USB, RS232
스캔 요소:	CCD	해결:	3mil 코드 39
피사계 심도:	10-600mm	스캔 모드:	수동, 연속, 자동 스캔, 깜박임
인쇄 대비:	≥20%	CPU:	32 비트
케이블 길이:	1.5m	무게:	147g
전원 공급 장치:	DC 5V 80MA	작동 온도:	-20 ~ 50도
치수:	L161mm * W63mm * H80mm	디코딩 속도:	300 번 / Ｓ
드롭 높이:	1.5m
강조하다:	1D CCD barcode scanner with 3mil resolution , DS5110 barcode scanner 10-600mm depth , 1D barcode scanner with warranty

1D CCD Barcode QR Code Scanner Handheld Wireless Retail Barcode Scanner

DS5110 is a high-performance 1D barcode scanner with leading CCD image recognition technology. It can easily read barcodes on paper, goods, screens and other media. Widely used in manufacturing, warehouse, logistics, healthcare, retail chains, mobile payment, express delivery, inventory management, food traceability, and asset inventory.

Product Parameters

Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	2500
Reading precision	≥3mil/0.076mm(PCS90%,Code 39)
Decoding speed	300times/s
Depth of field	10mm-600mm
Scan Mode	Manual, Continuous, Auto Sense, Flashing
Scan angle	Test Conditions: CODE39,10mil/0.25mm,PCS90% Pitch: ±60° Roll: ±30° Skew: ±60°
Print Contrast Signal	≥20%
Ambient Light	Dark environment, indoor natural light
Symbologies	UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5(IATA), Codabar(NW-7), Plessey, MSI Plessey, RSS, China Post, etc.
Weight	≈147g(without cable)
Dimension	L161mm * W63mm * H80mm
Communication Mode	USB(USB-KBW,USB-COM),RS232
Interface Type	USB, RS232
Power Supply	DC 5V@80mA(work)
Operating temperature	-20ºC to 50ºC
Storage temperature	-40ºC to 70ºC
Humidity	5% to 95%(non-condensing)
Drop Height	1.5m
Temp. Test	30 minutes for high Temp., 30 minutes for low Temp., High Temp.: 60ºC Low Temp.: -20ºC
Transport vibration Test	10H@125RPM

Key Features

Ergonomic design for comfortable use
Reads all mainstream 1D barcodes easily
High-performance processor with fast decoding (3mil)
Supports multiple languages and systems
Interfaces: USB, RS232
Ideal for supermarkets, warehouses, mobile payment, and chain stores

Detailed Photos

Company Profile

Packaging & Shipping

Certifications

Frequently Asked Questions

Q1: How do you ensure the high quality of your barcode scanners?

DYscan is a professional manufacturer and developer of barcode scanners with 18 years of field experience. We have a professional QC team and testing machines (engine age test, wire bend machine, switch life test, shock resistance test). All our barcode scanners pass CE, FCC, ROHS certifications.

Q2: How do you perform quality control?

We conduct wire bend tests 1 million times, button tests 1 million times, and all devices are tested before shipping.

Q3: What is the warranty period for the barcode scanner?

12 months warranty.

Q4: How do you ensure stable performance?

We use flow line production throughout the process. Every product is tested at least 4 times before delivery.

Q5: Do you provide OEM or ODM services for barcode scanners?

We offer OEM services including custom logos, color boxes, and user manuals. Our technical team supports ODM services.

Q6: What are your company's strengths?

As a professional scanner manufacturer, we have specialized departments: R&D for new product development, production for manufacturing and testing, and marketing/sales with dedicated customer service.

Q7: Do I need to install drivers?

No. Our scanners support plug-and-play functionality and are compatible with Windows, Mac OS, iOS, Linux, UNIX, and Android systems without requiring driver installation.
