Name: DS6530-2D IP65 Wired Barcode Scanner 300 Scans/Sec CMOS
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

홈 제품 소개 1D 바코드 스캐너

DS6530-2D IP65 Wired Barcode Scanner 300 Scans/Sec CMOS

제품 상세 정보:

결제 및 배송 조건:

최소 주문 수량:	1

접촉

상세 제품 설명

모델 번호.:	DS6530-2D	인터페이스 유형:	USB
스캔 속도:	300은 / 초를 스캐닝합니다	스캔 요소:	CMOS
CPU:	ARM32비트	해결:	1024*1280
읽기 정밀도:	3mil/0.076mm	디코딩 속도:	100CM/초
피사계 심도:	60mm ~ 1000mm	스캔 모드:	수동, 자동 감각
인쇄 대비:	20%	IP 등급:	IP65
무게:	290g	치수:	L153.2mmW66.0mmH110.5mm
전원 공급 장치:	DC 5V@260ma
강조하다:	IP65 wired barcode scanner , 1D barcode scanner 300 scans/sec , CMOS barcode scanner with warranty

1D/2D Industrial IP65 Wired Handheld Barcode Scanner with CMOS Technology

Product Overview

The DS6530-2D is a wired 2D handheld barcode scanner featuring advanced CMOS image recognition technology. Designed for industrial environments, it efficiently reads barcodes from paper, goods, screens, and other media surfaces.

Key Applications

Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset tracking.

Product Features

Ergonomic design for comfortable extended use
Reads all mainstream 1D and 2D barcode formats
High-performance processor enables fast decoding (3mil resolution)
IP65 protection rating for waterproof and dustproof operation
Supports multiple operating systems and programming languages
Widely used in supermarkets and inventory management systems

Technical Specifications

Performance Parameters

Scan Type	CMOS
CPU	32-bit
Resolution	1024×1280 (1.3 million pixels)
Reading Precision	≥3mil/0.076mm (PCS90%, Code 39)
Decoding Speed	100CM/S
Depth of Field	60mm~1000mm
Scan Modes	Manual, Auto Sense
Prompt Modes	LED indicator, buzzer
Field of View	40° × 30°
Scan Angles	Pitch: ±60° Roll: ±360° Skew: ±55°
Supported Symbologies	1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Codabar, MSI, GS1 Databar 2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, Aztec

Physical Parameters

Weight	Approx. 290g (scanner only)
Dimensions	153.2mm × 66.0mm × 110.5mm (L×W×H)
Communication Modes	USB, RS232
Interface Types	USB, DB9
Power Supply	DC 5V@260mA (operating)

Environmental Specifications

Operating Temperature	-20°C to 50°C
Storage Temperature	-40°C to 60°C
Humidity	5% to 95% (non-condensing)
Transport Vibration Test	10H@125RPM

Included Accessories

USB Cable for connecting to host devices
RS232 Cable with USB power supply

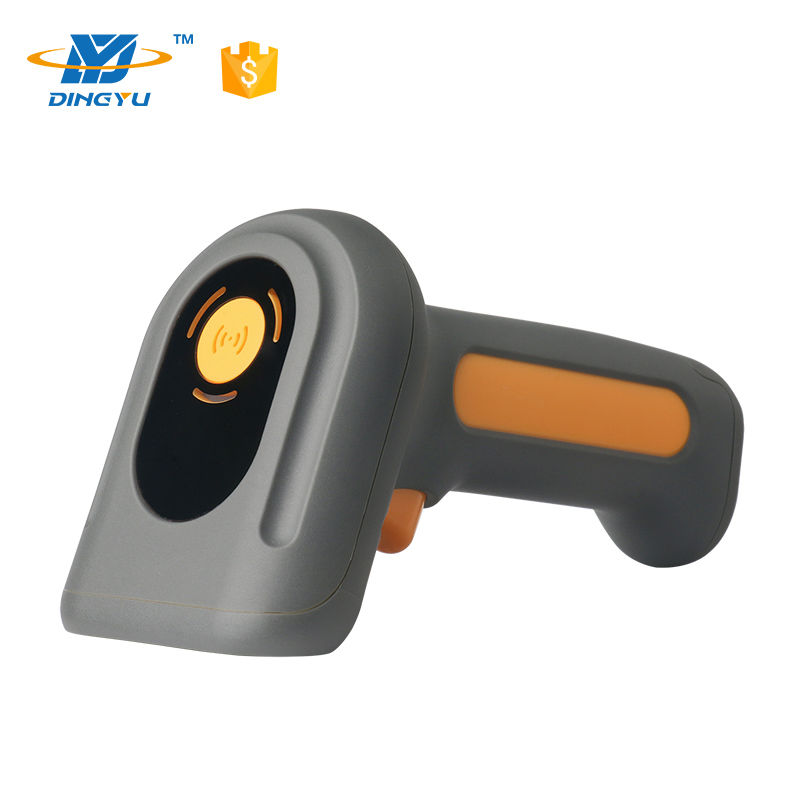

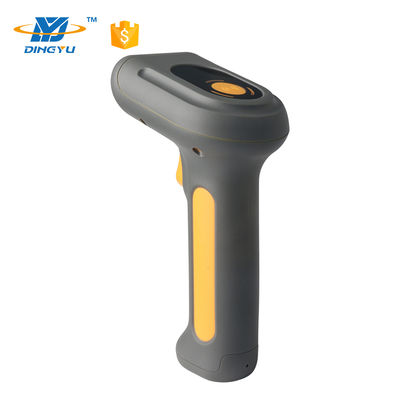

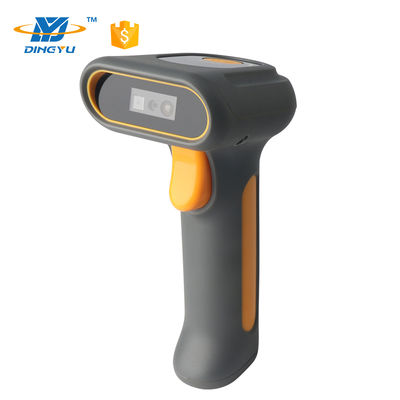

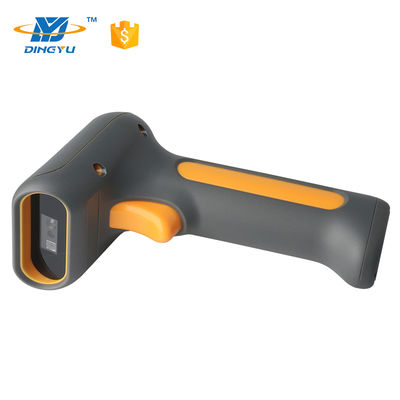

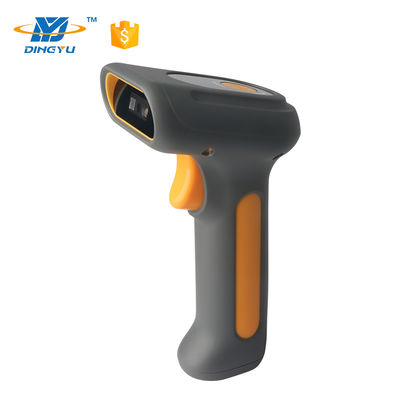

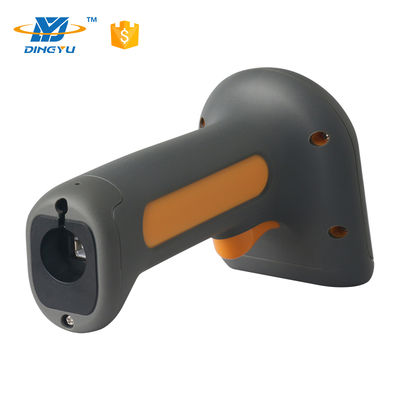

Product Images

Frequently Asked Questions

Q1: How do you ensure high quality barcode scanners?

DYscan is a professional manufacturer with 18 years of experience. Our quality control includes professional testing equipment (engine age test, wire bend machine, switch life test, shock resistance test). All scanners pass CE, FCC, and ROHS certifications.

Q2: What quality control measures do you implement?

We conduct 1 million wire bend tests and 1 million button press tests. All devices undergo thorough testing before shipment.

Q3: What is the warranty period?

12 months warranty.

Q4: How do you maintain stable performance?

We use assembly line production with at least 4 quality tests per product before delivery.

Q5: Do you offer OEM/ODM services?

Yes, we provide OEM services including custom logos, packaging, and manuals. Our technical team supports ODM development.

Q6: What are your company strengths?

We have specialized departments for R&D, production, testing, marketing, and customer service to ensure comprehensive support.

Q7: Are drivers required?

No, our scanners support plug-and-play operation with Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
